Author Topic: Living Hinge- Window wall to Roof  (Read 4686 times)

Offline apachesteve

  • Trade Count: (0)
  • Soggy Tenter
  • ***
  • Posts: 20
  • Dont do anything now you wil regret later:->
Living Hinge- Window wall to Roof
« on: April 18, 2008, 03:25:46 PM »
Hi All, It finally happened. My living hinge that attaches the window wall to the roof failed. ive been looking for how-to threads on how to replace but all ive found is is the side panel hinges and the window wall to bed hinge replacement...any help is appreciated. (ive already ordered the hinge material from Apache Sales)

1973 Ramada

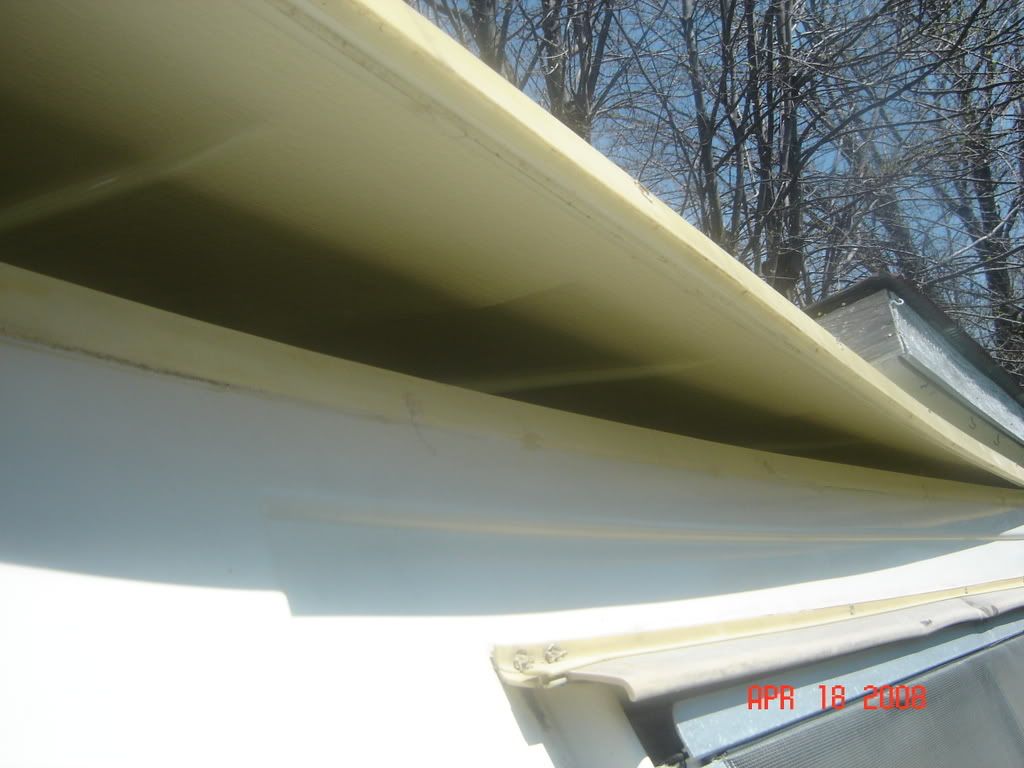

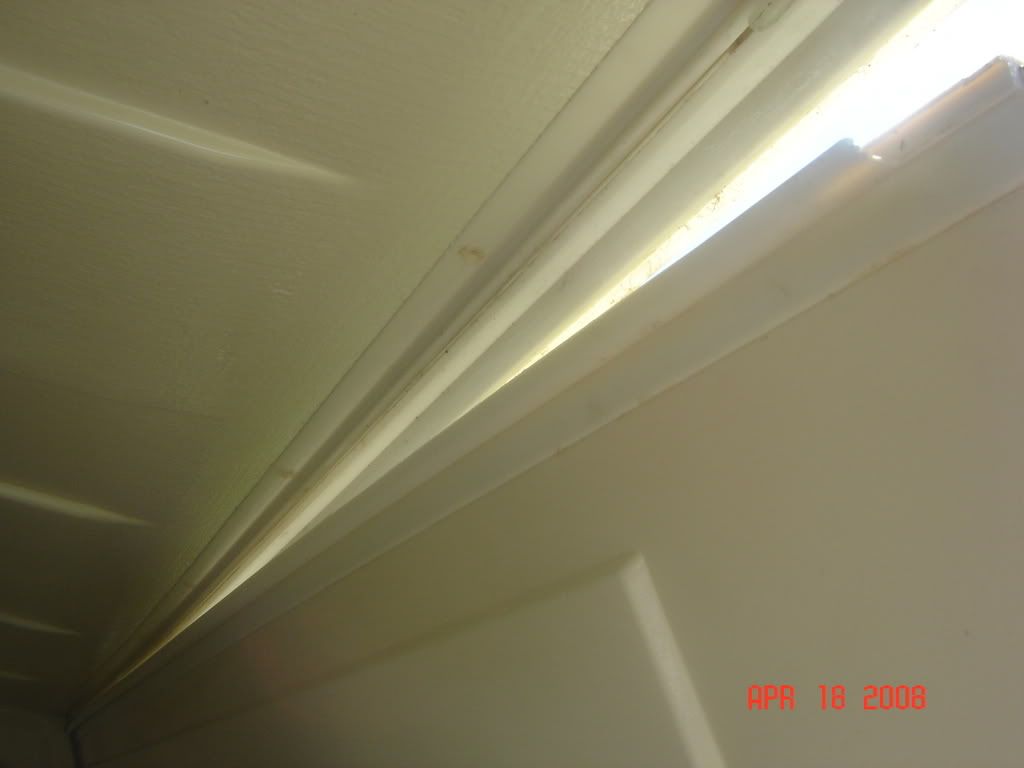

Here is what im up against

(thanks njjimf)




Stephen
« Last Edit: April 18, 2008, 03:56:49 PM by apachesteve »
Stephen & Dawn
Jennifer-1997
Lydia-2004
2000 f150 4x4 5.4l
1973 Ramada

Offline njjimf

  • Administrator
  • Trade Count: (0)
  • Raccoon
  • *****
  • Posts: 122
    • http://www.apacheowners.com
  • State: NJ
Re: Living Hinge- Window wall to Roof
« Reply #1 on: April 18, 2008, 03:29:35 PM »
Hi,

for forum postings, the photos have to be on a web server (unlike email attachements).  You can use free services like photobucket.com or Fotolode.com to post the photo to the web.  Then they will give you a link for posting in a forum.

Jim
« Last Edit: April 18, 2008, 03:40:14 PM by njjimf »
www.apacheowners.com

1977 Apache Ramada

Offline Redwood

  • Members
  • Trade Count: (0)
  • Vesely Prodigy
  • ****
  • Posts: 10495
  • State: California
  • Type of Camper: 1976 Roamer / 1973 Mesa
Re: Living Hinge- Window wall to Roof
« Reply #2 on: April 18, 2008, 05:25:36 PM »
apachesteve, Here's a link to a sticky in our forum on How To Change Living Hinge.
It's really not hard at all.  http://www.apachepopups.net/smf/index.php?topic=1689.0
There is all sorts of info on hinge replacement under the heading Living Hinges/Bed End Caps
« Last Edit: April 18, 2008, 05:38:13 PM by redwood »
GREG
"It's not about getting through the storm, but learning to dance in the rain"
http://www.apachepopups.net/smf/index.php?action=media;sa=album;in=3

Offline cptmoney

  • Trade Count: (0)
  • Greenhorn Camper
  • **
  • Posts: 8
Re: Living Hinge- Window wall to Roof
« Reply #3 on: August 18, 2008, 01:48:17 PM »
is the section between the widow wall and the roof a true "living hinge" then?

i'm getting ready to order some hinge materials, and will need enough to do this section as well...

anyone?

cptmoney

Offline Redwood

  • Members
  • Trade Count: (0)
  • Vesely Prodigy
  • ****
  • Posts: 10495
  • State: California
  • Type of Camper: 1976 Roamer / 1973 Mesa
Re: Living Hinge- Window wall to Roof
« Reply #4 on: August 19, 2008, 08:59:45 PM »
is the section between the widow wall and the roof a true "living hinge" then?
i'm getting ready to order some hinge materials, and will need enough to do this section as well...
anyone?
cptmoney
                  YES, On your 74 Mesa all the walls on your bed ends are living hinge. The window wall connects to the bed end roof with living hinge.
« Last Edit: August 19, 2008, 09:01:16 PM by redwood »
GREG
"It's not about getting through the storm, but learning to dance in the rain"
http://www.apachepopups.net/smf/index.php?action=media;sa=album;in=3

Offline cptmoney

  • Trade Count: (0)
  • Greenhorn Camper
  • **
  • Posts: 8
Re: Living Hinge- Window wall to Roof
« Reply #5 on: August 19, 2008, 09:41:02 PM »
Thanks, redwood!

I had a strong suspicion that this stuff was all just one giant living hinge...

I'll get on it!

cptmoney

Offline Redwood

  • Members
  • Trade Count: (0)
  • Vesely Prodigy
  • ****
  • Posts: 10495
  • State: California
  • Type of Camper: 1976 Roamer / 1973 Mesa
Re: Living Hinge- Window wall to Roof
« Reply #6 on: August 20, 2008, 07:02:20 PM »
Thanks, redwood!
I had a strong suspicion that this stuff was all just one giant living hinge...
I'll get on it!
cptmoney
               Make sure you read the link on installing living hinge. It really helps.  http://www.apachepopups.net/smf/index.php?topic=1689.0
GREG
"It's not about getting through the storm, but learning to dance in the rain"
http://www.apachepopups.net/smf/index.php?action=media;sa=album;in=3

Offline naturelover

  • Trade Count: (0)
  • Moose
  • *****
  • Posts: 340
  • State: WV
  • Type of Camper: '73 Ramada '75 Ramada '76 Ramada '77 Mesa
Re: Living Hinge- Window wall to Roof
« Reply #7 on: June 13, 2013, 09:04:38 PM »
Ah ha!!!

That is where my '73 Ramada is breaking apart. I was wondering if that could be fixed, great to know it can be.

Sent from my iPhone 5 using Tapatalk
« Last Edit: June 14, 2013, 11:19:58 AM by naturelover »

Offline Redwood

  • Members
  • Trade Count: (0)
  • Vesely Prodigy
  • ****
  • Posts: 10495
  • State: California
  • Type of Camper: 1976 Roamer / 1973 Mesa
Re: Living Hinge- Window wall to Roof
« Reply #8 on: June 13, 2013, 10:35:02 PM »
Nature lover,
My wife and I make the best living hinge replacement for the best price. I also send instructions on how to install it. You can either send me a PM or contact us at gregcolleen@sbcglobal.net
                                                                                      Greg/Redwood

http://www.ebay.com/itm/Apache-Pop-Up-Camper-Trailer-Living-Hinge-44-Ft-Free-Shipping-/281121068407?pt=Motors_RV_Trailer_Camper_Parts_Accessories&hash=item41741f1577&vxp=mtr


« Last Edit: June 13, 2013, 10:44:27 PM by Redwood »
GREG
"It's not about getting through the storm, but learning to dance in the rain"
http://www.apachepopups.net/smf/index.php?action=media;sa=album;in=3

Offline Scott 73

  • Trade Count: (0)
  • Marshmallow Roaster
  • ****
  • Posts: 22
  • State: Tenn.
  • Type of Camper: 1973 Mesa
Re: Living Hinge- Window wall to Roof
« Reply #9 on: June 13, 2013, 10:56:40 PM »
I just finished this same project on our Mesa last weekend, it's not as hard as it looks. Just take your time the results are well worth it. I used the hinge that Redwood and his better- half make and the quality is outstanding.


Offline count me in

  • Trade Count: (0)
  • Vesely Prodigy
  • *****
  • Posts: 1013
  • State: IL
  • Type of Camper: 78 ramada
Re: Living Hinge- Window wall to Roof
« Reply #10 on: June 18, 2013, 11:24:40 PM »
I just finished this same project on our Mesa last weekend, it's not as hard as it looks. Just take your time the results are well worth it. I used the hinge that Redwood and his better- half make and the quality is outstanding.
'

I did my 76 Mesa about 3 weekends ago. the 1st end the bed side ("wing panels") were easy the bed end was a PITA  the other end all went easier than the 1st though on my 76  there are alum extrusuions between bed end and roof that were a royal PITA on both ends to get back together. I think living hinge would have been a whole lot easier on the top of the bed end to the bed roof than what I had to contend with.

Offline count me in

  • Trade Count: (0)
  • Vesely Prodigy
  • *****
  • Posts: 1013
  • State: IL
  • Type of Camper: 78 ramada
Re: Living Hinge- Window wall to Roof
« Reply #11 on: June 18, 2013, 11:28:47 PM »
I don't think I'm the only one that had a tough time understanding what "living hinge" was or where it went on my camper until I got into pulling my bed end side walls, bed end and roof apart for ABS repair. once I saw it (mine was "toast") I finally "got" what people were meaning, by "living hinge"
